Mi-Flues | SKU: 25-125-MAE

Screw-FIX Adaptor to SW - Ø125

Name: Screw-FIX Adaptor to SW - Ø125
Brand: Mi-Flues
SKU: 25-125-MAE
Price: 14.61 GBP
Availability: InStock

£14.61 Ex. VAT £26.56

Delivery & Collection

Most orders are delivered within 2–5 working days. Large items such as stoves are delivered kerbside on pallets; smaller items are sent by courier. Free collection is also available from our Wickford showroom. See our Shipping Policy for full details.

Returns & Refunds

You may return unused, uninstalled items in their original packaging within 14 days of receipt. Please note, stoves cannot be returned once installed, unless faulty. For more information, see our Refunds & Returns Policy

Warranty

All products are covered by the manufacturer’s warranty. Stove bodies typically carry 5–10 years cover, and accessories 1–2 years. Installation by a qualified HETAS or Gas Safe engineer is required to maintain warranty. See our Warranty Information for details.

Payments

We accept Visa, Mastercard, American Express, PayPal, and Shopify Payments. All transactions are processed securely and include VAT.

Customer Support

If you have any questions before or after your purchase, please contact us on 01268 744555 or email info@essexlogburners.co.uk.

Can't find what you are looking for?

Speak to our Sales team on 01268 744555

Description

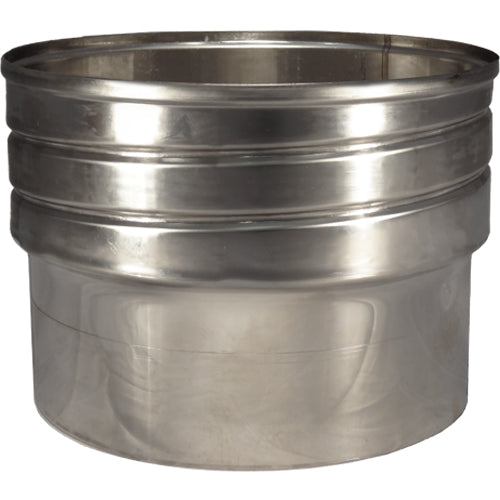

This 0.6mm 316 stainless steel adaptor is designed to be a transitional joint connecting a ridged single wall connecting flue system to MI-FLEX that is the same nominal diameter.

Specification	Detail
Designation:	BSEN 1856-2 T600 N1 W V2 L50012 G
System:	Fast-Fix Screw MF21
Material:	316L
Colour Finish:	Stainless Steel / NATURAL
Fuels:	Wood, Oil, Gas, Smokeless coal

Overview: MI-FLEX-Screw Fix accessories is a family of screw on installation fitting that have been perfectly designed for use with MI-FLEX 316 and 904 flexible flue liners. When fitted in conjunction together it will make a full system chimney.

General Application: Theses items are to used in conjunction with MI-FLEX multi fuel flexible flue liner. Building Regulations Document J requires that a flexible flue liner can only be installed completely enclosed inside a masonry chimney. A non masonry enclosure such as timber or plasterboard boxing in is not acceptable. All items are suitable for use on appliances up to 600°C (T600 designation). Suitable for use on Wood

Bottom Fixings: Bottom fixings are used to make the transitional change from the connecting flue system to the Flexible flue liner. The connection to the flex should be made inside the confines of the existing masonry chimney and no flex should be on show at any time. Provisions must me made to secure the bottom fixing into the connecting flue below and the flexible above to make a gas tight seal, The use of fire cement, ceramic rope or tape or high temperature sealant its advisable.

Specific Application: This 0.6mm 316 s/s adaptor is designed to be a transitional joint connecting a ridged single wall connecting flue system to MI-FLEX that is the same nominal diameter.

Maintenance: The chimney system must be designed to allow for easy provision for sweeping and maintenance. Sweeping must be carried out by competent person. On solid fuel applications a list of HETAS registered sweeps can be found at www.hetas.co.uk. under no circumstances should chemical cleaners or mild steel tools be used to sweep stainless steel chimneys. Cleaning and inspection of the chimney system should be carried out at least once a year, along with maintenance of the appliance, but it is recommended that chimneys serving solid fuel appliances be swept at least twice a year, at the end of the heating season to remove any deposits, which may have built up during the season, and at the start of the next heating season to check for any blockages or deposits. I.e. birds nets.
